Sanitary Housings
Find your product reset
Designed for critical applications requiring high purity and durability
• Designed for critical applications requiring high purity and durability
• All wetted parts are 316L Stainless Steel electro-polished with standard
25RA internal finish and 32RA external finish.
• In-line single cartridge design
– Tri-clamp closure for easy cartridge change-outs
– Ideal for vent applications
• T-style housing design
– Available for 1 through 21 cartridges
– Tri-clamp closure for single cartridge housing
– Swing bolt closures for rugged design and
secure sealing
– Removable bottom seal plate allows ease of cleaning
• Available with 226 or 222 style cartridge connectors
• 1 ½” TC Gauge Port and ½” TC vent and drains are standard
• Optional Sanitary Twist Valve is available for easy sampling of process
fluid
Applications
| Ultrapure Water | Food & Beverage |
| Fine Chemicals | Wine/Beer |
| Electronics | Vent |
| Pharmaceuticals | DI Water |
Specifications
| Maximum Operating Pressure 150 psig (10.3 bar) @ 225° F (107° C) |
Gaskets Silicone Optional: EPR, Viton, Teflon, Teflon Encapsulated Silicone and Teflon Encapsulated Viton |
| Inlet and Outlet Connections Inlet /Outlet: Tri- Clamp Drain Ports: 1/2″ Tri-Clamp Gauge Port with Vent: 1 1/2″ Tri-Clamp with 1/2″ Tri-Clamp |
Finish Internal surfaces: 25RA Electro-polished External surfaces: 32RA Electro-polished |
| Materials of Construction Head and Shell: 316L Stainless Steel Connections: 316L Stainless Steel Closure: 316L Stainless Steel Mounting Legs: 316L Stainless Steel |
Cartridge Type 222 or 226 cartridges (maximum 2 3/4″ OD) |
| Custom Options Sanitary Twist Valve’s for vent and drains See Ordering Guide for complete listing |
Showing 1–20 of 25 results
-
$8,892.02 Read more12SFH – T-Style Housing with Swing Bolt Closure. 12 – 20″ Cartridges
-
$9,594.91 Read more
12SFH – T-Style Housing with Swing Bolt Closure. 12 – 30″ Cartridges
-
$10,297.15 Read more
12SFH – T-Style Housing with Swing Bolt Closure. 12 – 40″ Cartridges
-
$1,530.65 Read more1SFH – T-Style Housing with Clamp Closure. 1 – 10″ Cartridges
-
$1,562.23 Read more
1SFH – T-Style Housing with Clamp Closure. 1 – 20″ Cartridges
-
$1,597.52 Read more
1SFH – T-Style Housing with Clamp Closure. 1 – 30″ Cartridges
-
$1,632.82 Read more
1SFH – T-Style Housing with Clamp Closure. 1 – 40″ Cartridges
-
$1,508.36 Read more
1SFH – T-Style Housing with Clamp Closure. 1 – 5″ Cartridges
-
$1,304.02 Read more1SIFH – In-Line Housing with Clamp Closure. 1 – 10″ Cartridges
-
$1,331.89 Read more
1SIFH – In-Line Housing with Clamp Closure. 1 – 20″ Cartridges
-
$1,369.04 Read more
1SIFH – In-Line Housing with Clamp Closure. 1 – 30″ Cartridges
-
$1,407.12 Read more
1SIFH – In-Line Housing with Clamp Closure. 1 – 40″ Cartridges
-
$1,283.59 Read more
1SIFH – In-Line Housing with Clamp Closure. 1 – 5″ Cartridges
-

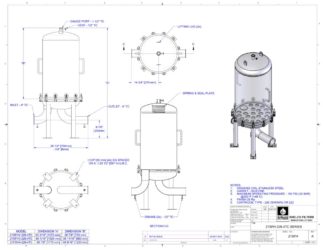

$21,473.01 Read more21SFH – T-Style Housing with Swing Bolt Closure. 21 – 30″ Cartridges
-
$22,890.24 Read more
21SFH – T-Style Housing with Swing Bolt Closure. 21 – 40″ Cartridges
-
$3,897.21 Read more3SFH – T-Style Housing with Swing Bolt Closure. 3 – 10″ Cartridges
-
$4,216.72 Read more
3SFH – T-Style Housing with Swing Bolt Closure. 3 – 20″ Cartridges
-
$4,697.83 Read more
3SFH – T-Style Housing with Swing Bolt Closure. 3 – 30″ Cartridges
-
$5,019.20 Read more
3SFH – T-Style Housing with Swing Bolt Closure. 3 – 40″ Cartridges
-
$6,618.58 Read more5SFH – T-Style Housing with Swing Bolt Closure. 5 – 20″ Cartridges
Showing 1–20 of 25 results
