1SFH – T-Style Housing with Clamp Closure. 1 – 5″ Cartridges

Description

The 1SFH5-C226-1TC25-11S T style sanitary housings are designed for critical applications requiring high purity and durability. This housing accepts a 10” filter cartridge with a 226 end cap configuration. 1.5” tri-clamp connections on the inlet and outlet. All wetted parts are 316L Stainless steel electro-polished with standard 25RA internal finish and 32RA external finish.

Maximum operating pressure 150 psig (10.3 bar) @ 225F (107C)

Gasket material Silicone

Tri-clamp closure

½” TC ferrule vent & drain

1 ½” gauge port

Specification sheet (link to SFH Series Cartridge housing.pdf)

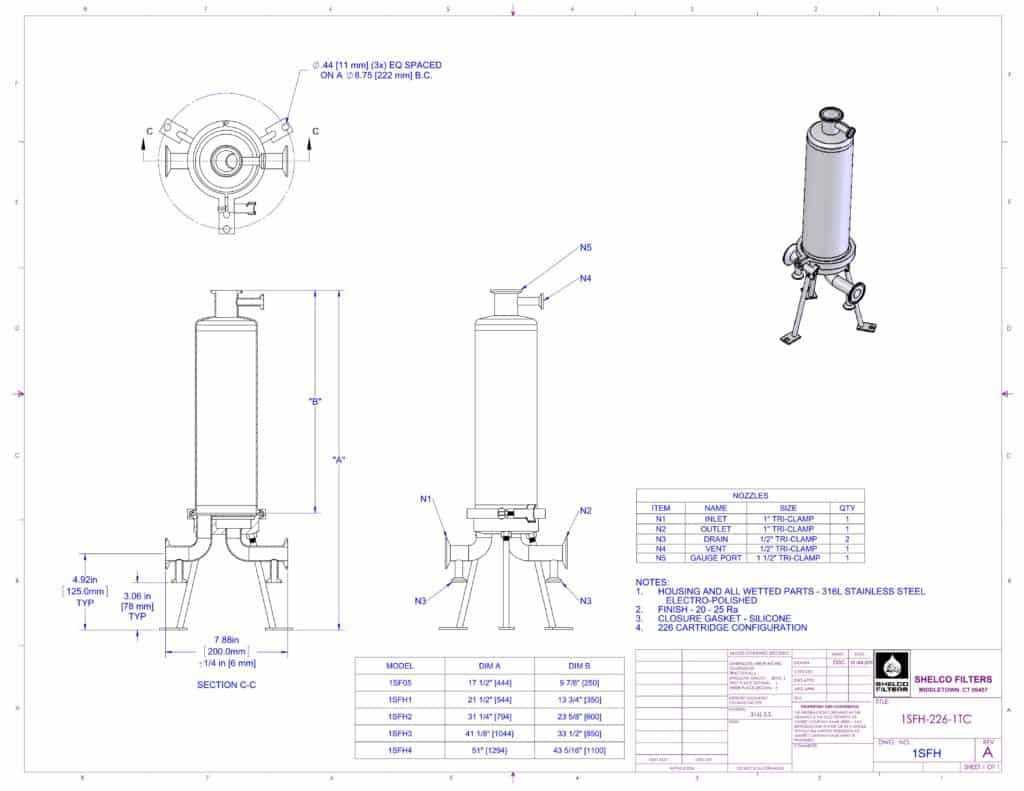

Example drawing (link to 1SFH-226-1TC.pdf)
