1SIFH – In-Line Housing with Clamp Closure. 1 – 10″ Cartridges



The 1SIFH1-C-226-1.5TC25-11S in-line sanitary housings are designed for critical applications requiring high purity and durability. This housing accepts a 10” filter cartridge with a 226 end cap configuration. 1.5” tri-clamp connections on the inlet and outlet. All wetted parts are 316L Stainless steel electro-polished with standard 25RA internal finish and 32RA external finish.

Maximum operating pressure 150 psig (10.3 bar) @ 225F (107C)

Gasket material Silicone

Tri-clamp closure

½” TC ferrule vent & drain

Specification sheet (link to SFH Series Cartridge housing.pdf)

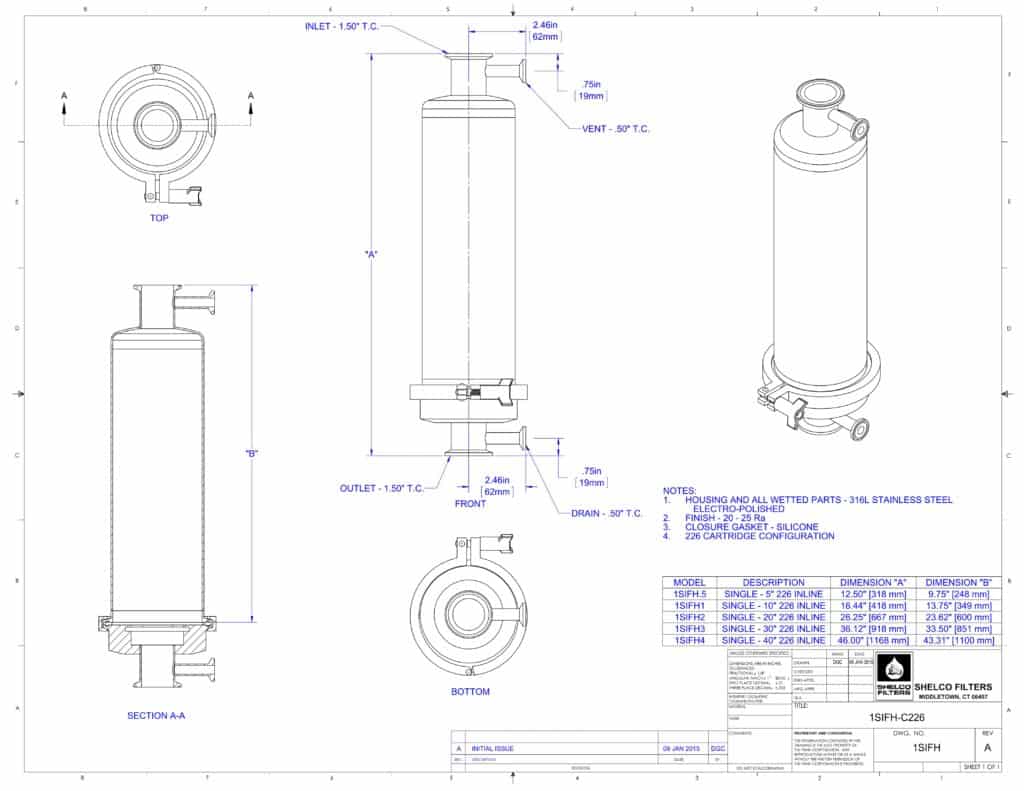

Example drawing (link to 1SIFH-226.pdf)

Additional information

Housing Style

Housing Length
