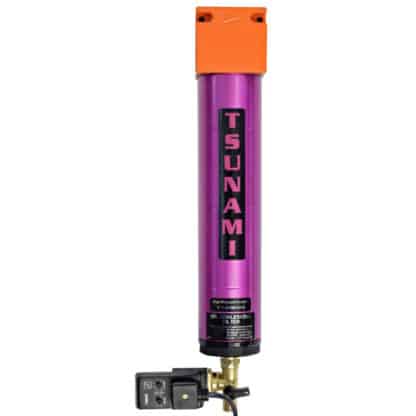

Tsunami Oil Coalescing Filter – Gr. Z Element w/ Elec. Drain – 120 Series
#21999-0082-Z-ED
Tsunami Oil Coalescing Filters (includes Elec. drain) protect your equipment and delicate instruments from dirt, water and oils found in compressed air systems. This will also eliminate fish eye found in paint jobs. Tsunami coalescing filters remove these contaminates at a very high efficiency – up to 99.99% for .01 micron particles and droplets. Air flows from inside the element out. Liquid will release from the filter and drop down to the sump where an automatic drain will eject the collected liquid. We oversize our elements which reduces pressure drop and gives longer life. Typical pressure drops are 1 psig dry and 2 psig wet.
| Specifications | |
| Flow: | 120 scfm |
| ISO Class: | <1 |
| Micron Rating: | 0.01 Micron |
| Oil Carry Over PPM: | 0.001 |
| Drain Type: | Selenoid |
| Max. Length: | 15.875 in. |
| Max. Width: | 3.125 in. |
| Weight: | 4.5 lbs |
| Max. Pressure: | 250 psi |
 |
