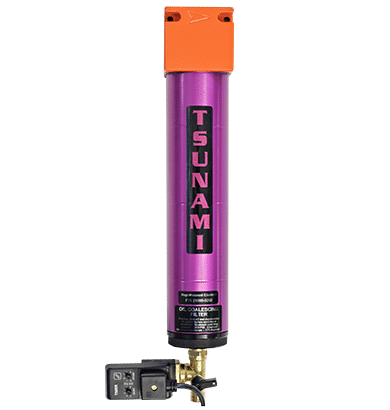

21999-0131-Z-ED Tsunami Oil Coalescing Filter Gr. Z Element w/ Elec. Drain – 50 Series – ½” In/Out – 50 SCFM

$308.75

Description

Tsunami Oil Coalescing Filter – Gr. Z Element w/ Elec. Drain – 50 Series
#21999-0131-Z-ED

Tsunami Oil Coalescing Filters protect your equipment and delicate instruments from dirt, water and oils found in compressed air systems. This will also eliminate fish eye found in paint jobs. Tsunami coalescing filters remove these contaminates at a very high efficiency – up to 99.99% for .01 micron particles and droplets. Air flows from inside the element out. Liquid will release from the filter and drop down to the sump where an automatic drain will eject the collected liquid. We oversize our elements which reduces pressure drop and gives longer life. Typical pressure drops are 1 psig dry and 2 psig wet.

Specifications
Flow: 50 scfm
Port Size: 1/2″ NPT
ISO Class: <1
Micron Rating: 0.01 Micron
Oil Carry Over PPM: 0.001
Max. Pressure: 250 psi
Drain Type: Solenoid
Max. Length: 14-1/4 in.
Max. Width: 2-3/8 in.
Weight: 3.0 lbs
Max. Pressure: 250 psi
Tsunami Youtube Playlist

Additional information

Weight 5 lbs
Dimensions 18 x 5 x 5 in
