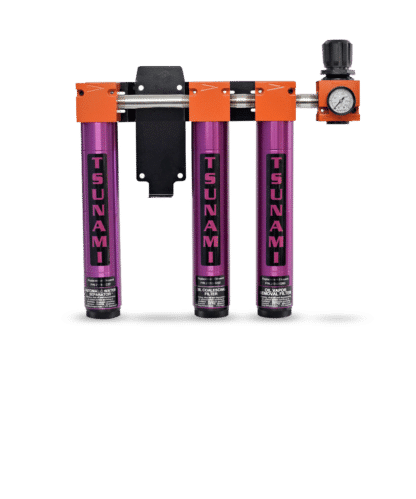

21999-0257 Tsunami Comp. Air System Filt. Pack. #6 – 50 Series (3-stage w/ regulator) – ½” In/Out – 50 SCFM



Tsunami Filt. Pack. #6 – 50 Series (3-stage w/ regulator)

Tsunami Three Stage Filter Package includes a Tsunami Water Separator & Tsunami Oil Coalescer and a Activated Carbon filter. This last stage will remove odor and oil vapors, and will provide Gr. D air also included is our Precision Regulator. Packaged for automotive painting, inspection rooms, air contact with food or medical equipment and air bearings Air output: 0.003 ppm of 0.01 micron. ISO class 1 HEPA Gr., Gr. “D” instrument

Includes: Tsunami Water Separator, Oil Coalescing filter, Activated Carbon filter with Regulator (3-Stage w/ regulator), and Mounting Bracket.

  • 30 Day Money Back Performance Guarantee!!
  • Guaranteed point-of-use protection for air tools and pneumatic equipment
  • Removes large amounts of moisture
  • Exceeding recommended flow of 50 SCFM may result in moisture carryover
  • Unique up-flow separation takes place as air reverses direction 180° and passes through a special stainless steel mesh element
  • Integral float drain ejects water and oil from large drain sump
  • OEM Choice for Product Protection
Flow Rating: 500 scfm
ISO Class: < 1
Micron Rating: 0.01 Micron
Port Size: 1/2″ NPT
Oil Carry Over PPM: 0.001
Max. Pressure: 250 psi
Drain Type: Float
Length: 18.25 in.
Tsunami Youtube Playlist

Additional information

Weight 17 lbs
Dimensions 26 x 19 x 8 in
