Description

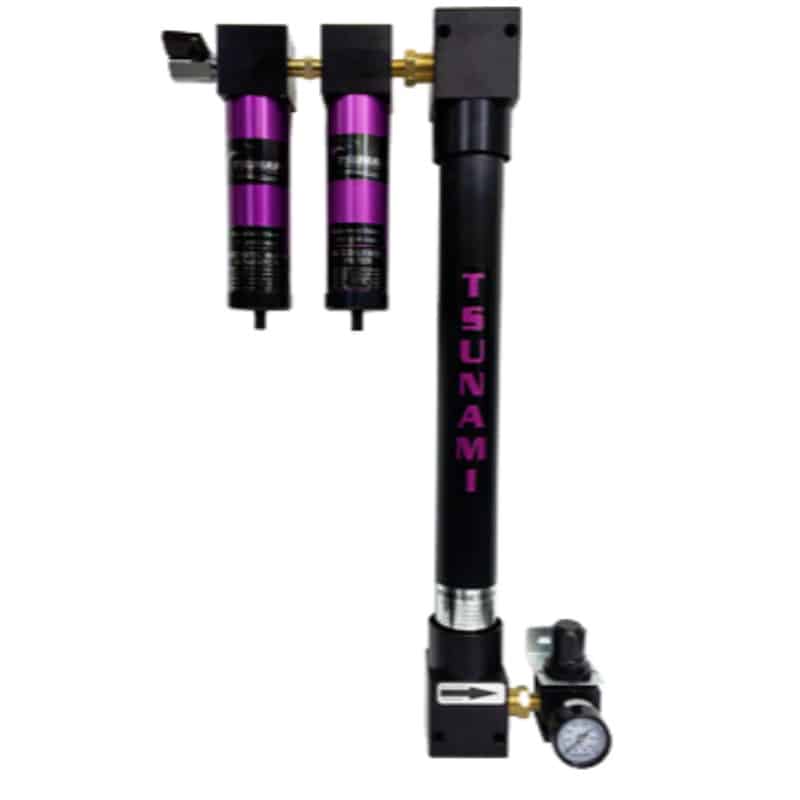

Tsunami 20 Series Membrane Dryer
#21999-0889
The Industrial Membrane Dryer uses proven Tsunami technology to provide your compressed air system with clean, dry air for point of use applications.
Operation
Incoming contaminated air passes through a stainless steel ball valve before entering the first stage Tsunami Water Separator where water and particulates are removed down to 10 micron. The air then travels through a second stage oil coalescing filter where oil aerosols are filtered down to .001 ppm and particulates are trapped down to .01 micron. The pre-treated air then enters the Membrane Dryer before passing through an outlet regulator.
Features and Benefits
- 100% duty cycle
- Grade “D” instrument air meets HEPA air quality standards
- No electricity required
- Micro-flex element capacity 3x larger than competitor’s elements
- Easy, low cost maintenance
Specifications
- 3.3 CFM sweep air @ 100psi
- 175psi maximum inlet pressure
- 60psi maximum outlet pressure
- Inlet/Outlet NPT: 1/4 inch
- 20 CFM max inlet flow
- Max flow at 100% Duty Cycle: 15 CFM
- 100°F maximum inlet air temperature
