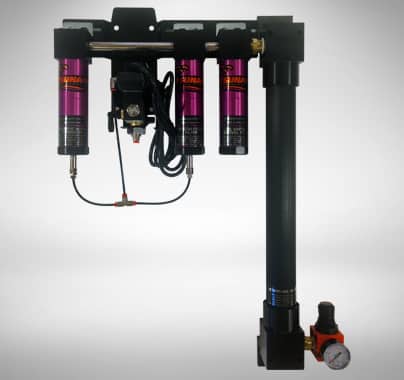

21999-0957 Tsunami Compressed Air Filter System 15 Series CMM Filtration System with Membrane Dryer – 15 SCFM

$1,567.50

Description

Tsunami Precision Equipment Membrane Drying System
#21999-0957

The 15 SCFM Membrane Dryer is configurable in two variations making it ideal for industrial and precision equipment applications. The Membrane Dryering is packaged as a complete system and includes a water separator, oil coalescing filter, and activated carbon filter

Incoming air passes through the inlet ball valve before entering the 1st stage water separator where water and particulates are removed down to 10 micron. The air then travels through the 2nd stage oil coalescing filter where oil aerosols are filtered down to .001 ppm and particulates are trapped down to .01 micron. Air then enters the 3rd stage activated carbon filter where oil vapor is removed down to .003 ppm. The pre-treated air then enters the Membrane Dryer where water vapor is removed from the air. This system can provide dew points down to –80°F. The air exits through the outlet regulator.

 – Maintains accuracy of machine
– Removes water, oil & oil aerosols down to .01 micron
– Removes oil vapor down to .003 ppm
– Eliminates expensive repairs
– Easy installation
– Electronic Drain Valve ejects oil & water
– Micro-flex element capacity 3X larger than competitors elements
– Grade “D” instrument air meets HEPAair quality standards
– 100% duty cycle

Specifications
Flow: 15 scfm
Maximum Pressure: 175 psi
Maximum Inlet Temp: 100 °F
Sweep Air: 3.3 scfm @ 100 psi
Inlet Port: 1/4″ NPT
Outlet Port: 1/4″ NPT
Tsunami Youtube Playlist

Additional information

Weight 40 lbs
Dimensions 26 x 19 x 7 in
